Thomas Edison Inventions

Thomas Edison's record 1,093 patented inventions have greatly improved the world we know today. In fact, Edison is recognized as one of the greatest inventors of all time. His key inventions include the light bulb and electric utility system, recorded sound, motion pictures, R&D labs, and the alkaline family of storage batteries. His 4,000 invention notebooks chronicle the invention challenges of the late 19th and early 20th centuries, telling a vivid story of man's progress to a technological society.


Thomas Edison’s Light Bulb



Thomas Edison is most well known for his invention of the light bulb. Contrary to popular belief, Edison did not invent the light bulb; it had been around for a number of years. The electric lights at the time, however, were unreliable, expensive, and short-lived. Over twenty distinct efforts by other inventors the world over were already underway when Edison entered the light bulb invention race.

By creating a vacuum inside the bulb, finding the right filament to use, and running lower voltage through the bulb, Edison was able to achieve a light bulb that lasted for many hours. This was a substantial improvement, and one that led with more improvements, to making the light bulb practical and economical.

Of course, Edison also later invented the entire electric utility system so he could power all those light bulbs, motors and other appliances that soon followed.

Thomas Edison’s Phonograph



Considered to be the first great Thomas Edison invention, and his life-long favorite, the phonograph would record the spoken voice and play it back.

When speaking into the receiver, the sound vibration of the voice would cause a needle to create indentations on a drum wrapped with tin foil. Later Edison would adopt cylinders and discs to permanently record music.

The first recorded message was of Thomas Edison speaking “Mary had a little lamb”, which greatly delighted and surprised Edison and his staff when they first heard it played back to them.

Thomas Edison’s Motion Picture



Edison’s initial work in motion pictures (1888-89) was inspired byMuybridge’s analysis of motion. The first Edison device resembled his phonograph, with a spiral arrangement of 1/16 inch photographs made on a cylinder. Viewed with a microscope, these first motion pictures were rather crude, and hard to focus. Working with W. K. L. Dickson, Edison then developed the Strip Kinetograph, using George Eastman’s improved 35 mm celluloid film. Cut into continuous strips and perforated along the edges, the film was moved by sprockets in a stop-and-go motion behind the shutter.

In Edison’s movie studio, technically known as a Kinetographic Theater, but nicknamed “The Black Maria” (1893), Edison and his staff filmed short movies for later viewing with his peep hole Kinetoscopes (1894). One-person at a time could view the movies via the Kinetoscope. Each Kinetoscope was about 4 feet tall, 20 inches square, and had a peep hole magnifier that allowed the patron to view 50 feet of film in about 20 seconds. A battery-operated lamp allowed the film to be illuminated.

Thomas Edison’s Electrographic Vote Recorder



Edison was 22 years old and working as a telegrapher when he filed his first patent for the Electrographic Vote Recorder.

The device was made with the goal of helping legislators in the US Congress record their votes in a quicker fashion than the voice vote system.

To work, a voting device was connected to a clerk’s desk where the names of the legislators were embedded. The legislators would move a switch to either yes or no, sending electric current to the device at the clerks desk. Yes and No wheels kept track of the votes and tabulated the final results.

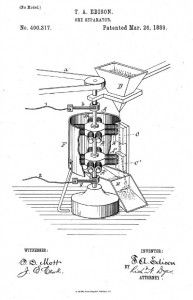

Thomas Edison’s Magnetic Iron Ore Separator



Thomas Edison experimented during the 1880′s and 1890′s with using magnets to separate iron ore from low grade, unusable ores. His giant mine project in northwestern NJ consumed huge amounts of money as experimentation plodded forward.

Engineering problems and a decline in the price of iron ore [the discovery of the Mesabi iron rich ore deposits near the Great Lakes] all lead this invention to be abandoned.

But later, Edison used what he learned with rock grinding to make his own robust version of Portland Cement, Edison Portland Cement, a very good product that built Yankee Stadium. Along the way, Edison totally revolutionized the cement kiln industry.

Thomas Edison’s Electric Pen



In 1876, Thomas Edison invented the first electric copy machine to create copies of his notes. Using a small motor, the pen makes a tiny needle go up and down that produce a series of holes (50 per second) that are later gone over with a roller to press ink through the holes to create many copies of the document. Edison claimed that over 5000 copies could be made at once. This lesser known invention would not only be a precursor to the copy machine, but the tattoo pen as well.


Thomas Edison’s Carbon Transmitter



Thomas Edison improved Alexander Graham Bell's system with his carbon transmitter, by elongating how far apart phones could be. This invention used a battery and carbon to vary the resistance and control the strength of the current on the phone line. His design used a transmitter with lampblack carbon behind the diaphragm in the phone so that when sound waves moved it, they would also change the pressure on the carbon. He later improved by using granules made from coal instead and this basic design was commonly used until the 1980s.


Thomas Edison’s Automatic Telegraph



Thomas Edison worked on automatic telegraphs between 1870 and 1874. The invention embossed special indents into a rotating cardboard disc with a needle powered by an electromagnet. It would then would form a recorded message that could be transmitted without an operator.

Edison later invented the Quadruplex Telegraph to send two messages at the same time on the same wire and a Wireless Telegraph for radio communications between ships that worked using a vibrator magnet instead of a electromagnetic waves,


Discover the all of Thomas Edison's Patents

While Edison was famous for a few inventions above, he also holds the record for creating 1096 U.S. Patents throughout his life. However, it is important to note that not all of these patents were for inventions that he personally created. Edison had a large team of researchers and inventors who helped him in his lab, and many of his patents were for improvements or refinements to existing technologies rather than entirely new inventions.
